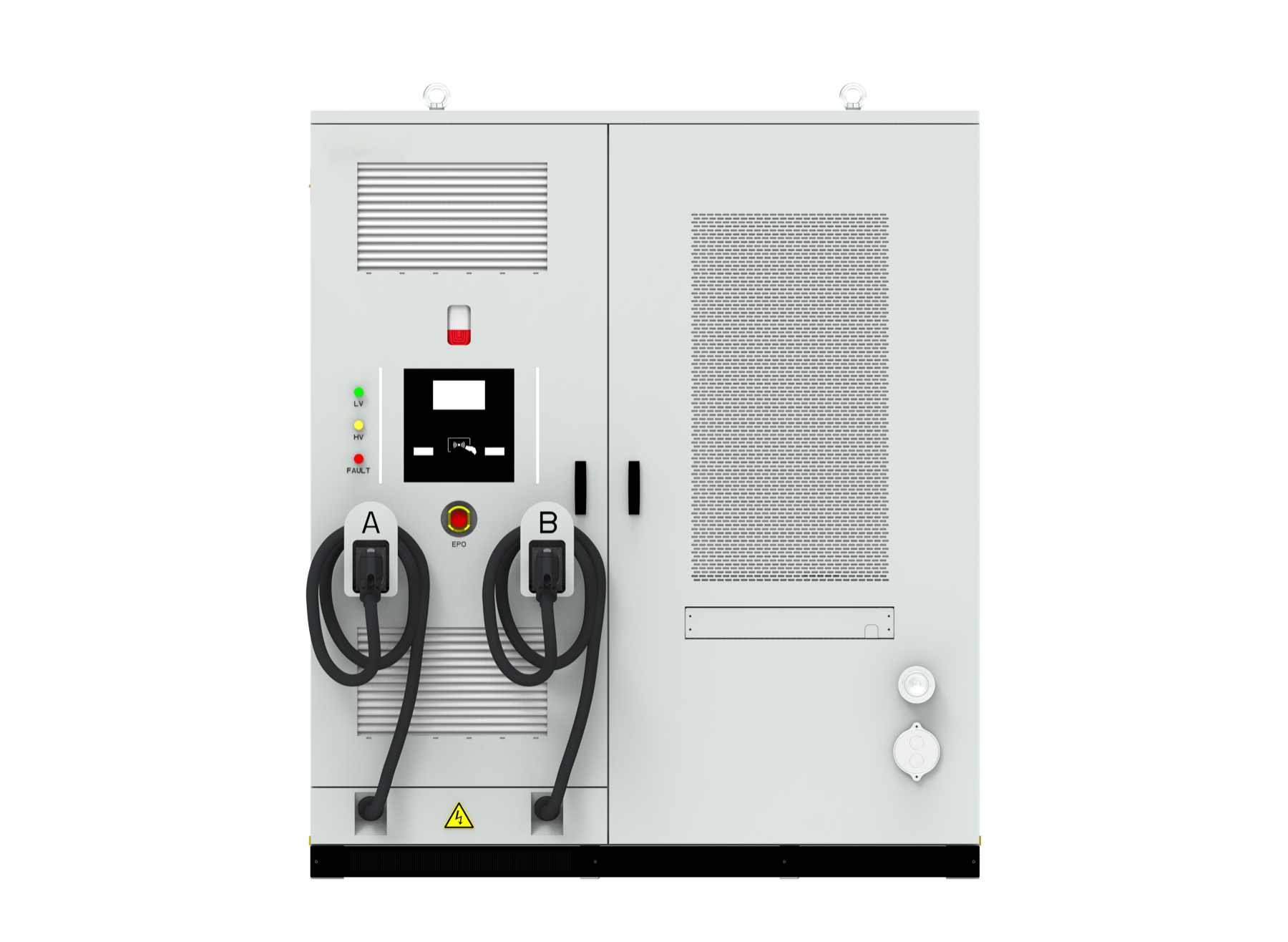

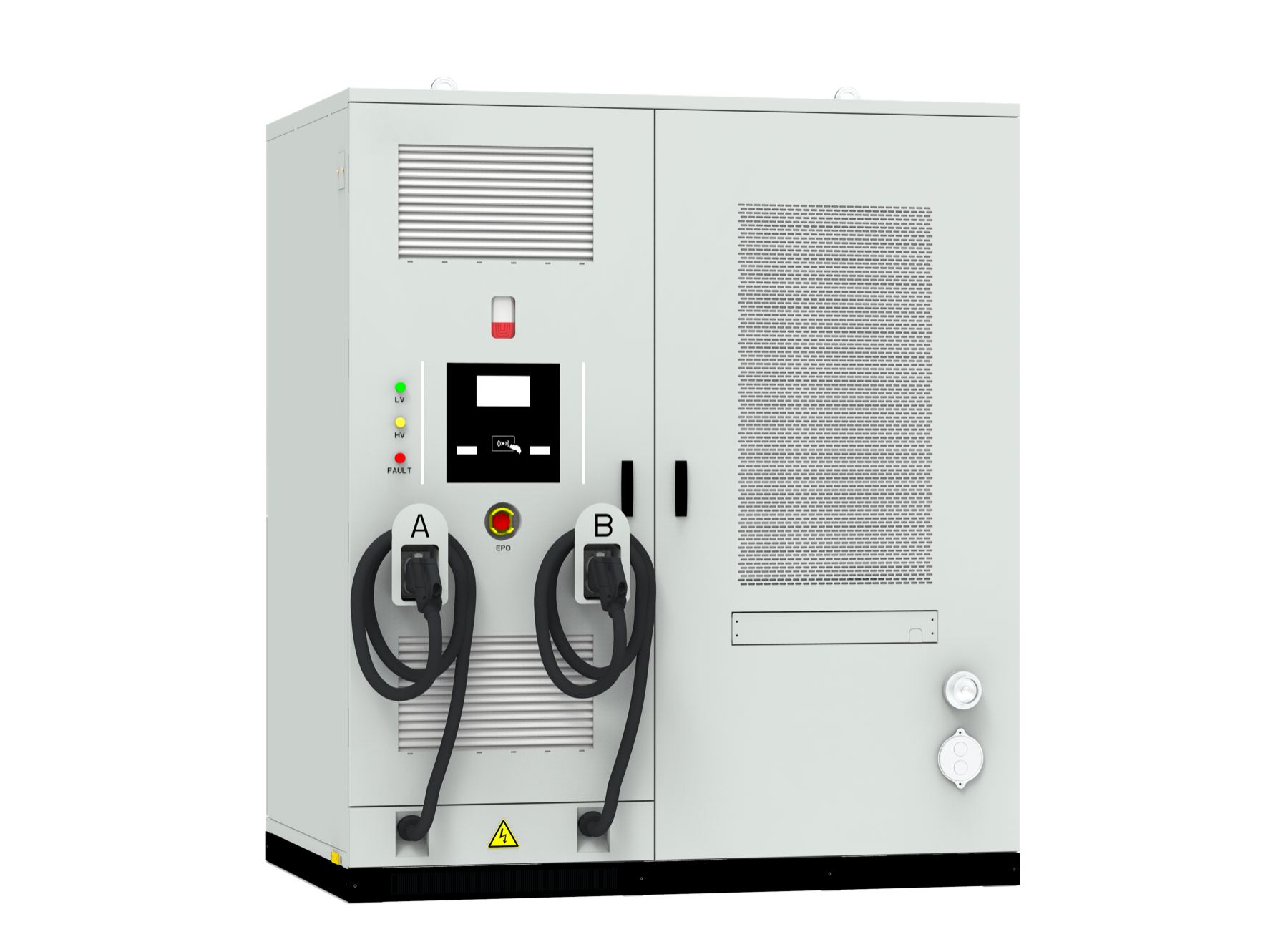

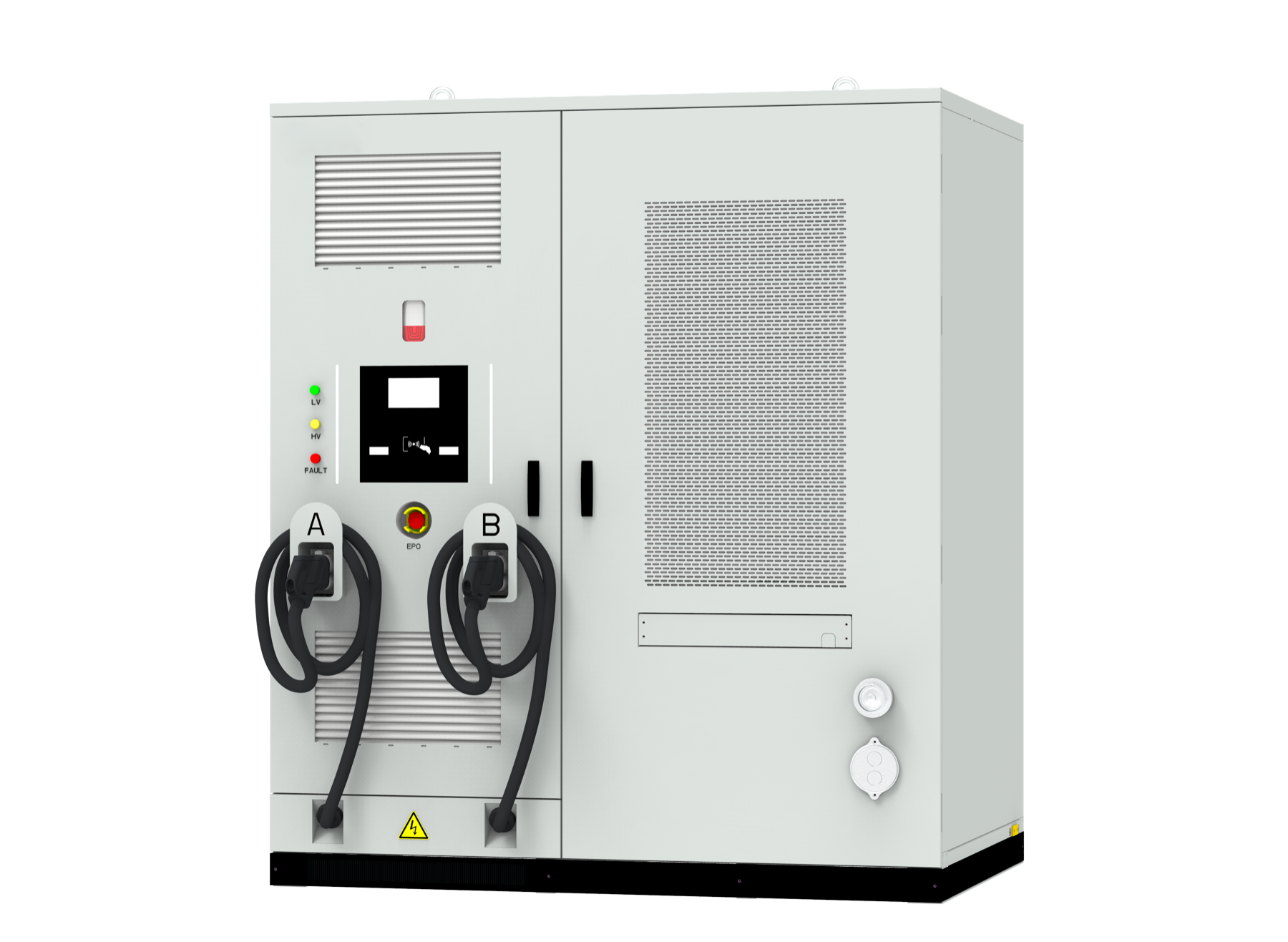

FarAmp-125TS Outdoor Cabinet PV Storage & Charging
125 kW AC, 100 kW PV, 253 kWh storage and 160 kW EV charging
Overview
FarAmp outdoor cabinet integrating photovoltaic input, LFP battery storage, modular PCS, EMS and dual-port DC fast charging for commercial charging sites.
Technical selection summary
FarAmp-125TS Outdoor Cabinet PV Storage & Charging is intended for Commercial EV charging station, PV charging hub, Fleet charging, Grid-constrained charging site. Selection should be confirmed against the model datasheet, system voltage and current limits, installation environment, communication requirements and destination-market documentation.
Key Features
- Integrated PV, storage and EV charging architecture
- 253 kWh lithium iron phosphate battery system
- 160 kW CCS2 DC fast charging output
- Dual MPPT photovoltaic input up to 100 kW
- Grid-connected and off-grid power support
- IP55 enclosure with air cooling and fire protection
Specifications
Detailed technical parameters of FarAmp-125TS Outdoor Cabinet PV Storage & Charging.
| Model / Series | FarAmp-125TS Outdoor Cabinet PV Storage & Charging |
| Model | FarAmp-125TS(DC100)(253kWh)(EV160) |
| Rated AC Power | 125 kW |
| Maximum AC Power | 137.5 kW |
| Grid Voltage | 400 Vac, 3W + PE |
| PV Input Power | 100 kW |
| PV Voltage Range | 250-685 Vdc |
| MPPT Channels | 2 |
| Battery Capacity | 253 kWh |
| Battery Voltage | 806.4 V |
| Battery Chemistry | LiFePO4, 314 Ah cells |
| EV Charging Power | 160 kW |
| Charging Connector | CCS2 |
| Charging Voltage | 150-1000 Vdc |
| Cooling / Protection | Air cooling / IP55 |
| Communication | CAN, Ethernet, RS485 |
| Dimensions | 2000 x 1350 x 2300 mm |
| Weight | Approx. 3500 kg |
| Product Category | EV Charger |
| Typical Applications | Commercial EV charging station / PV charging hub / Fleet charging / Grid-constrained charging site |
| OEM / ODM | Logo, label, enclosure and configuration support |
| MOQ | 1 system |
| Lead Time | Confirm by project configuration |
| Warranty | Confirm by project and destination market |
| Technical Document | Datasheet available for download |
Applications
Typical use cases and deployment scenarios.
Packaging & Delivery
Packaging and transport documents are confirmed against the selected model, route, quantity and destination requirements.
Export Packaging
Carton, pallet, crate, labels and protection method are selected according to product and transport mode.
Loading & Shipping
FCL or LCL loading plans and shipping marks can be prepared after the order configuration is confirmed.
Production Schedule
Confirm by project configuration. The final schedule is confirmed after technical approval and deposit.
